780 x 270 x 208 mm - Inner Unit

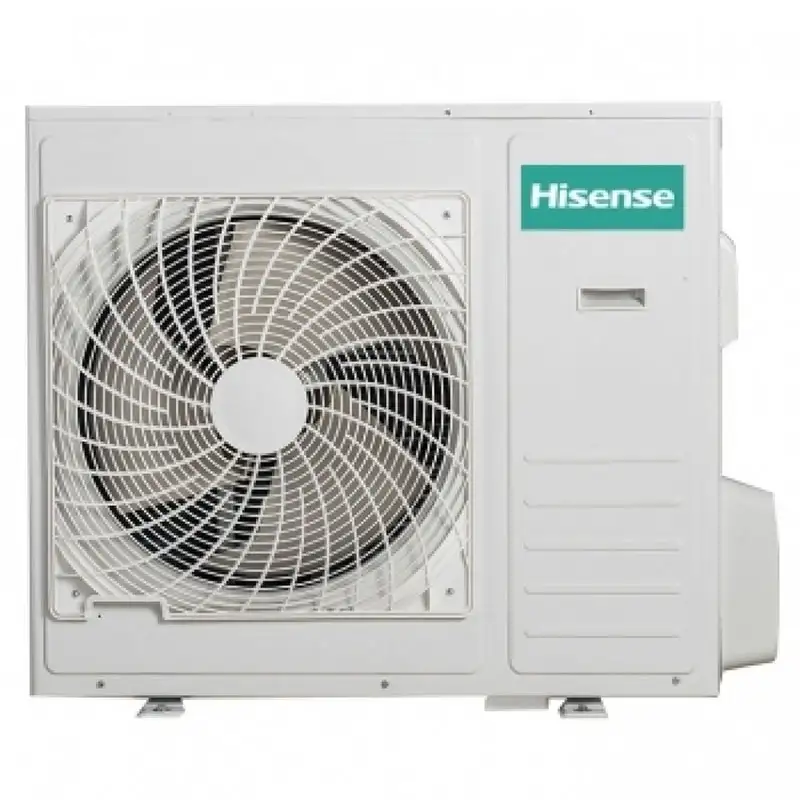

660 x 482 x 240 mm - Outer Unit
Pipe Diameter Liquid : 1/4 Inch
Pipe Diameter Gas: 3/8 Inch
WEIGHT
Indoor: 8 Kg
Outdoor: 24 kg
PERFORMANCE FEATURES
PANEL DISPLAY
LED
TURBO MODE
No
NOISE LEVEL(DB)-INDOOR
35 Min
40 High
NOISE LEVEL(DB)-OUTDOOR
53
AIR CIRCULATION
500m³/h
INDOOR TEMPERATURE INDICATOR
Yes
OTHER FEATURES
Coefficient of energy efficiency for cooling EER: 3.21
Coefficient of energy efficiency for heating COP: 3.61
Cooling capacity of air conditioner: 9000 btu/h
Air consumption (m3 / h): 500
Evaporator: Copper tube and Aluminum Fin
Condenser: Copper tube and Aluminum Fin
Refrigerant charge volume: 680 g
CONVENIENCE FEATURES
AUTO RESTART
Yes
SLEEP MODE
Yes
MEMORY STATUS
No
SELF DIAGNOSIS
Yes
SPEED SETTING
Yes
ON-TIMER
Yes
OFF-TIMER
Yes
ADDITIONAL FEATURES
Degree of protection (VN) / (external): IPX0 / IPX4
Protection class (VN) / (external): CLASS I / CLASS I
Removable and washable Panel
Washable PP Filter
24 Hours Timer
3 Speed and Auto Indoor Fan Control
Smart Function
Super Function
Compressor Indicator
AIR FLOW FEATURES
AIR FLOW DIRECTION
4D
AUTO AIR SWING
Yes
SELECTABLE SWING
Vertical Auto Swing Louver
OTHER AIR FLOW FEATURES
Manual Adjustable Horizontal Swing Louver
FILTER FEATURES
ANTI BACTERIAL FILTER
Yes
DUST FILTER
Yes
POWER FEATURES
POWER CONSUMPTION(WATTS)
0.778 kW Cooling
0.706 kW Heating
OPERATING CURRENT(AMPS)
cooling: 3.8
Heating: 3.4
VOLTAGE REQUIREMENT(VOLTS)
220-240
PHASE REQUIREMENT
1
FREQUENCY REQUIREMENT(HZ)
50
OTHER FEATURES
Energy efficiency class for cooling: A
Energy efficiency class for heating: A
